10 Nozzles Lipstick Filling Machine

Name: 10 Nozzles Lipstick Filling Machine
Brand: GIENI
Price: 1 USD

10 Nozzles Lipstick Filling Machine Manufactures

Brand Name : GIENI

Model Number : JLG-10

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1

Delivery Time : 45

Packaging Details : Film+Polywood Case

Machine Name : 10 Nozzles Half Silicone Lipstick Filling Machine with preheating device

Dimension : 1300 x 1050 x 2200mm (L x W x H)

Voltage : AC220V,1 P, 50/60HZ

Air Supply : 0.6~0.8Mpa,≥300L/min

Power : 3.8KW

Filling Nozzles : 10 pcs

Output : 1800-3000pcs/hour

Tank Volume : 20L per tank

Touch screen : Weinview

Weight : 260KG

Applications : filling for silicone mold lipstick

After Service Provided : online support, video call technical support, free repair parts, onsite installation, training, maintenance

Contact Now

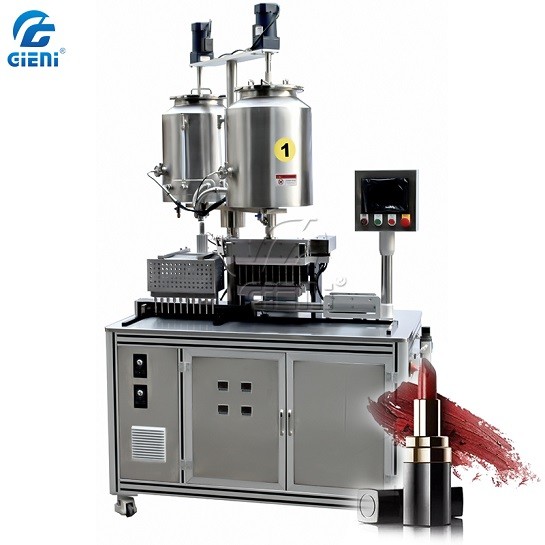

10 Nozzles Half Silicone Lipstick Filling Machine with preheating device

Application for silicone lipstick filling machine

The GIENI® JLG-10 is designed for kinds of lipstick, suitable for filling silicone mold lipstick, also can customized to switch into 12 nozzles metal mold lipstick filling

Features of silicone lipstick filling machine

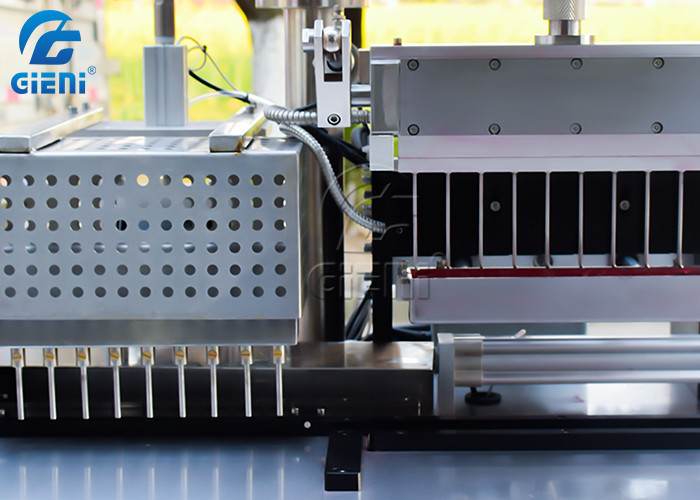

Preheating Part:

◆ designed with preheating system;

◆ adopts Switzerland hot air gum; air volume adjustable

◆ with mold push devide

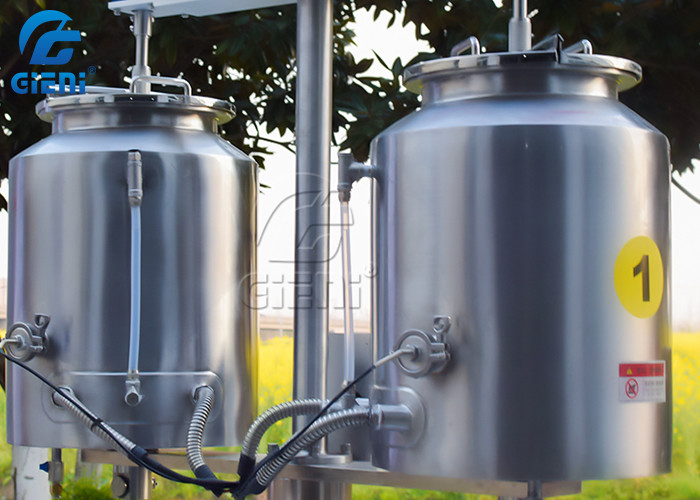

Filling Thank Part:

◆ equipped with 2 of 20L filling tank, each tank volume is 20L;

◆ tank comes with 3 layers, outer layer is stainless steel 304, inner layer which contact material directly is SUS316L;

◆ dual temperature control: material temperature control and oil temperature control;

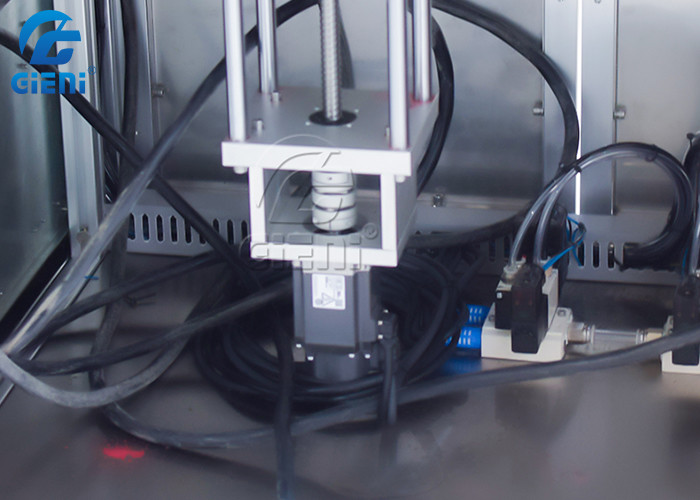

◆ piston filling system driven by servo motor, to ensure high precision;

◆ filling 10 pcs at a time;

◆ with mixing/heating/vacuum functions(options);

◆ with mold lifting device

Technical Parameters for Lipstick Filling Machine

Model	JLG10
Out dimension	1300x1050x2200mm
Voltage&Power consumption	AC220V,60HZ,1P,20A,3.8KW
Capacity	5~7 moulds/min(according to the size of container)
Bucket Volume	20L
Filling Volume	14ML
Weight	260KGS

10 Nozzles Lipstick Filling Machine

Product Tags:

10 Nozzles Lipstick Filling Machine

0.8Mpa Lipstick Filling Machine

3.8KW Lipstick Making Machine

10 Nozzles Lipstick Filling Machine Images
